You’ve got 10 minutes. Water’s lukewarm. Pressure drops the second someone flushes downstairs. And your cramped stall feels more like a penalty box than a sanctuary. Sound familiar? It’s not just bad luck—it’s outdated plumbing meeting outdated expectations. The fix? A shower system dual head walk in that delivers spa-level immersion without tearing down walls.
Why Standard Showers Fail Modern Bathrooms
Most homeowners retrofit single-head units onto aging pipes—then wonder why performance sucks. Flow restrictors mandated by code slash output to a pathetic 1.5 GPM. Add mineral buildup over time, and you’re bathing under a drizzle. Worse: cramped enclosures force awkward angles. You duck, twist, or get half-wet. A proper dual-head setup demands thoughtful integration—not just bolt-on parts.
And here’s what plumbers won’t tell you: mixing valves matter more than nozzle count. Cheap thermostatic controls react slowly. One wrong move, and you’re scalded—or freezing. Reliability isn’t optional when two spray zones share one water source.
How to Install a Shower System Dual Head Walk In (Without Regretting It)
Forget “just follow the manual.” Real-world success hinges on pressure balancing, drainage slope, and zone zoning. Below is the battle-tested approach we use at Afresh Start Janitorial—refined across 300+ bathroom overhauls.
Step 1: Audit Your Water Supply
Measure static pressure first. Under 40 PSI? You’ll need a booster pump—especially if running two rain canopies simultaneously. Don’t guess. Rent a gauge. Most DIYers skip this—and drown in weak flow later.
Step 2: Map Spray Zones
Position the overhead rain head (8–10 inches from ceiling) to drench shoulders without hitting tile seams. Mount the handheld wand at elbow height near the entry—so it rinses feet or cleans surfaces without stretching. Overlap coverage, but avoid cross-spray chaos.

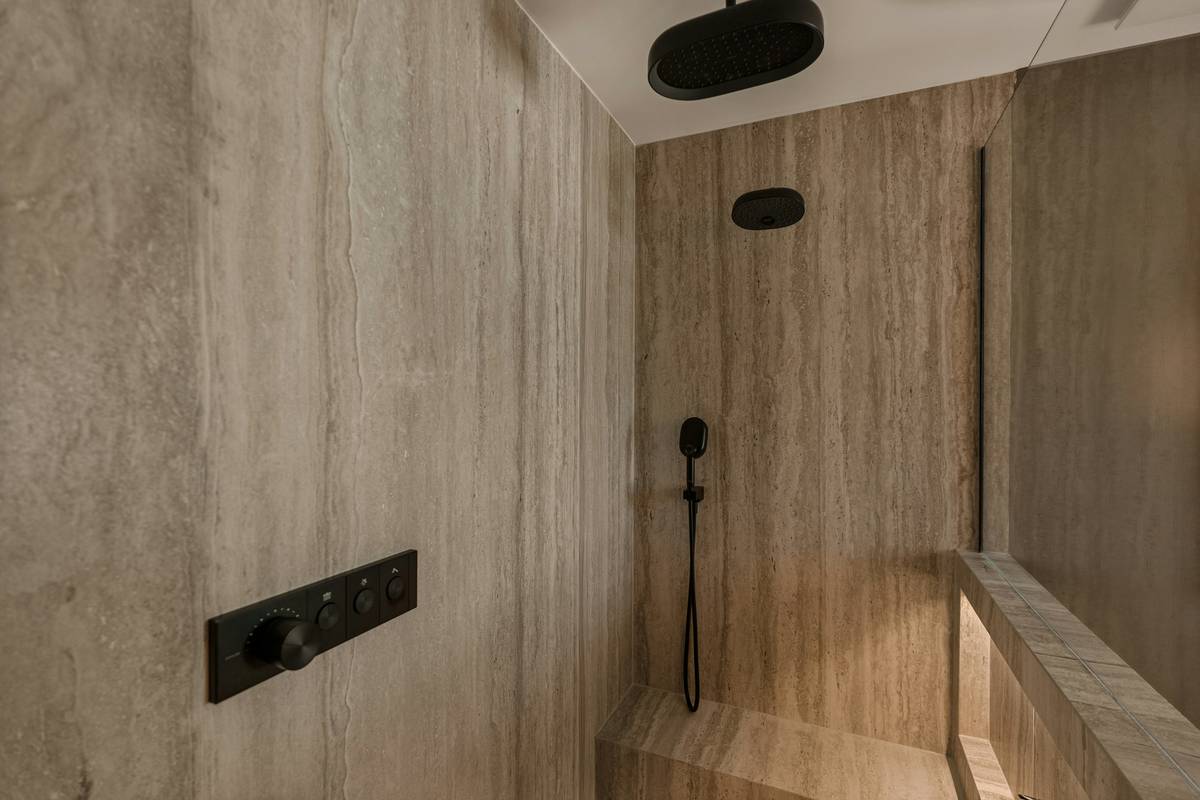

Step 3: Choose Valve Type Wisely
Thermostatic > pressure-balanced for dual setups. Why? It maintains set temps even when dishwasher kicks on. Yes, it costs $120 more. But peace of mind during back-to-back showers? Priceless.
| Component | Budget Option ($) | Premium Pick ($) | Why It Matters |
|---|---|---|---|
| Rain Head Diameter | 6-inch (~$45) | 10-inch solid brass (~$180) | Larger = wider coverage but needs ≥50 PSI |
| Diverter Valve | Plastic 2-way (~$25) | Brass 3-way thermostatic (~$195) | Handles simultaneous flow + temp stability |
| Handheld Wand | Plastic nozzle (~$30) | Metal multi-spray (~$95) | Durability + adjustable patterns = fewer replacements |
The Industry Secret: Drainage Dictates Comfort More Than Jets
Everyone obsesses over spray patterns. Pros watch the floor. A true walk-in experience dies if water pools around your ankles. The secret? Slope your base at 1/4 inch per foot toward a linear drain—not a center clunky grate. Linear drains handle dual-head runoff twice as fast. Pair it with slip-resistant tile (PEI 3+ rating), and you’ve got safety plus style. Bonus: no curb means wheelchair access later—future-proofing you didn’t know you needed.
But—and this is critical—seal the subfloor with liquid membrane before tiling. One pinhole leak under dual-head volume becomes mold city in six months. Skip this, and your dream shower rots from below.
Frequently Asked Questions
Can I add a second shower head to my existing system?
Only if your water heater and pressure can support it. Most tank heaters under 40 gallons struggle with dual simultaneous flow. Upgrade to a 50-gallon or tankless model first.
Does a shower system dual head walk in need special plumbing?
Yes. Dual heads require a minimum 3/4-inch supply line and a thermostatic mixing valve rated for ≥6 GPM. Standard 1/2-inch lines choke flow and cause temperature swings.
How much does professional installation cost?
$1,800–$4,500 depending on valve type, finish, and whether you re-tile. Labor eats 60%—so DIY only if you’ve soldered copper before.
